High Speed CNC Milling Machine

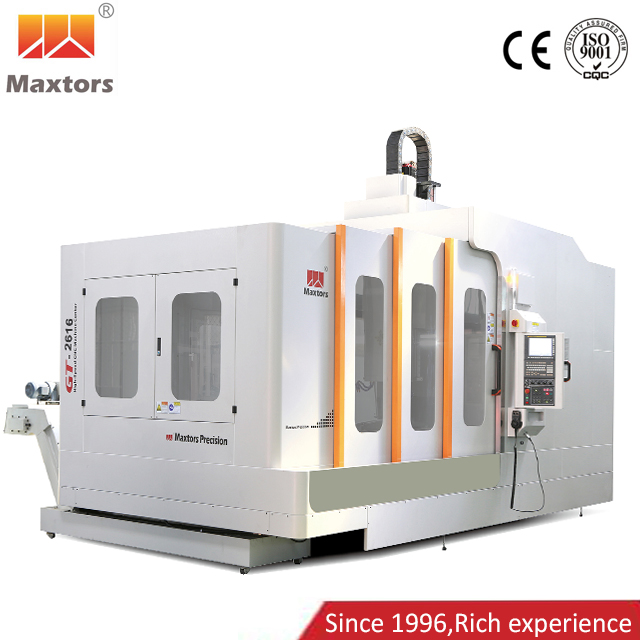

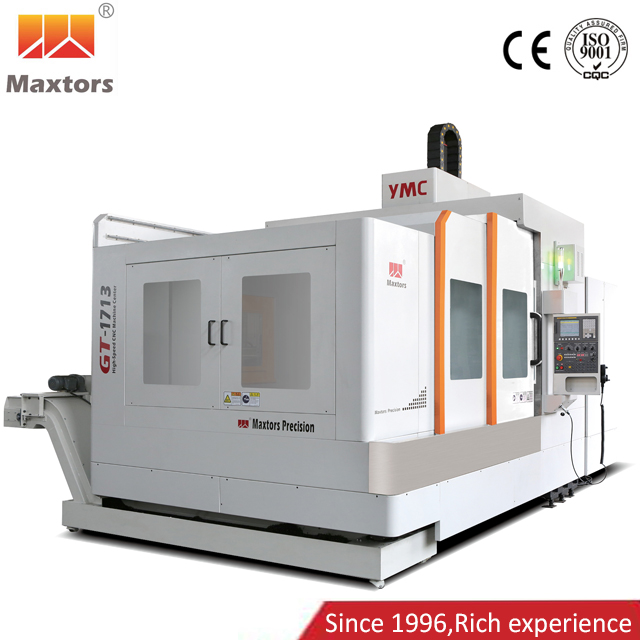

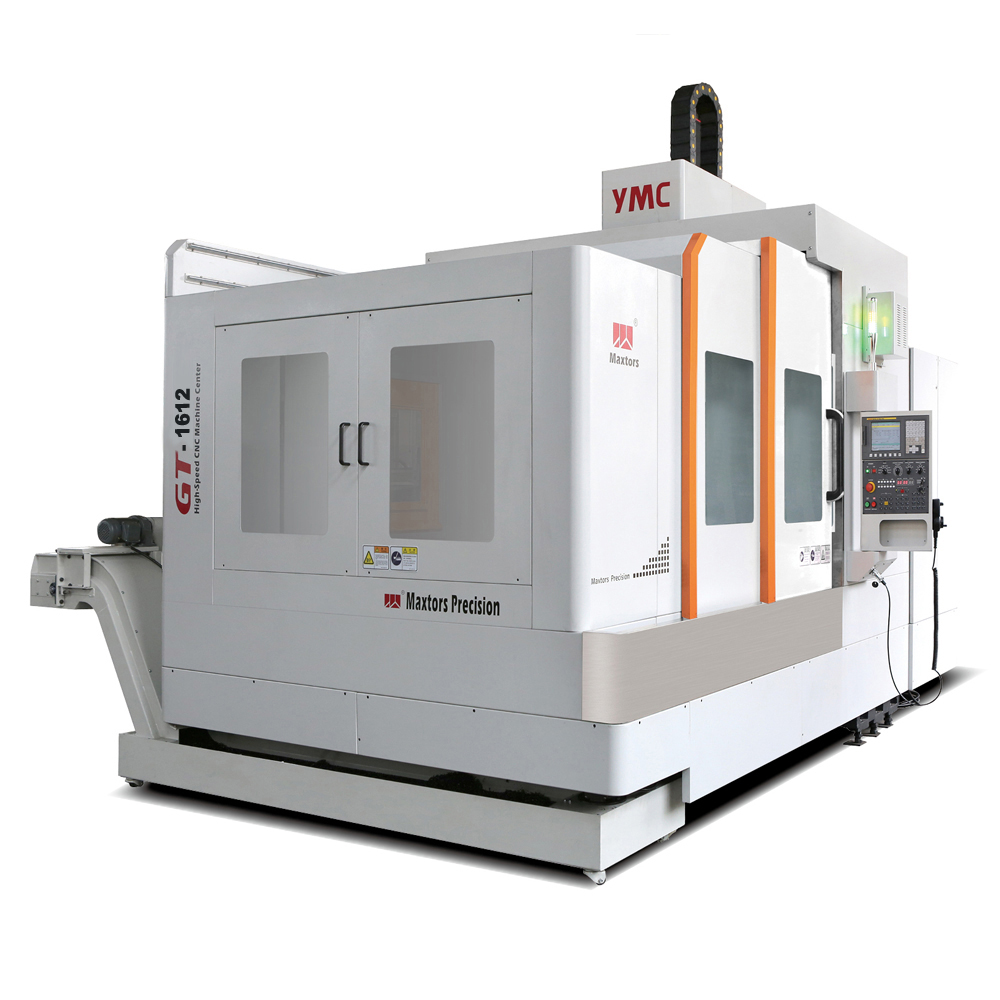

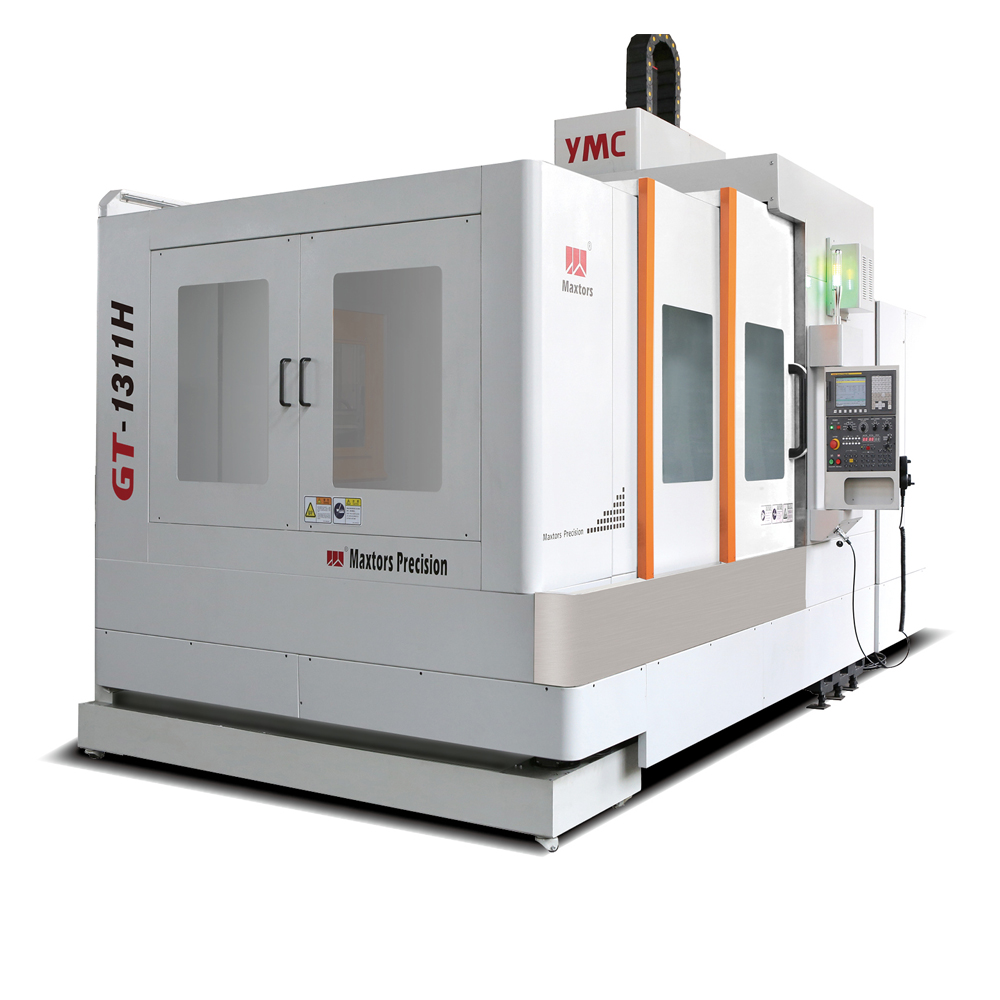

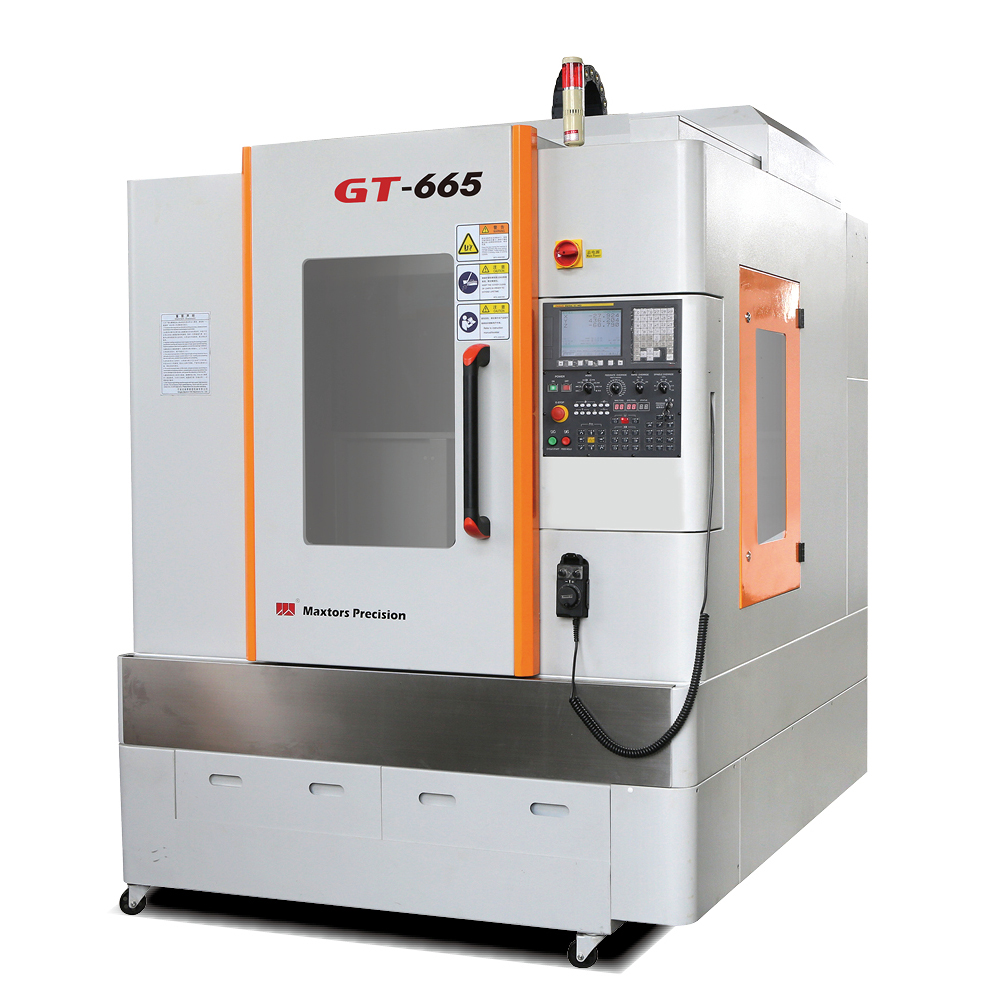

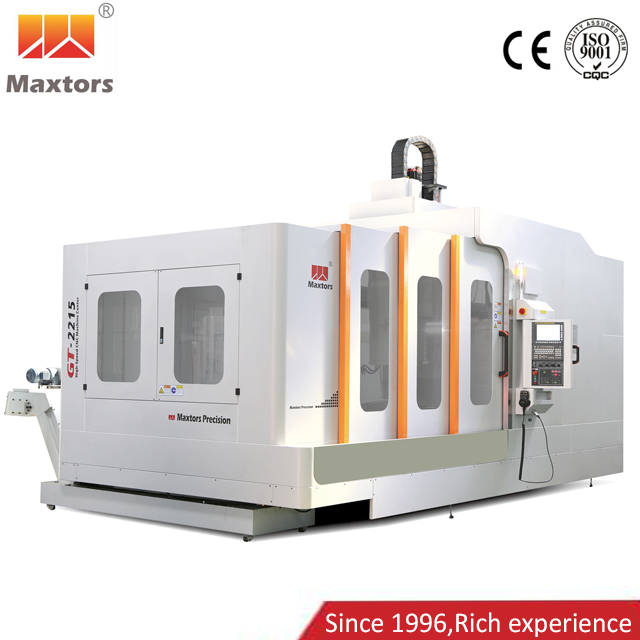

Item | Unit | GT-665 | GT-870 | GT-1190 | GT-1311H | GT-1612 | GT-1713 | GT-2215 | GT-2616 |
Travel | |||||||||
X Axis Travel | mm | 650 | 800 | 1100 | 1300 | 1600 | 1700 | 2200 | 2600 |
Y Axis Travel | mm | 600 | 700 | 900 | 1100 | 1200 | 1300 | 1500 | 1580 |
Z Axis Travel | mm | 260 | 400 | 600 | 600 | 580 | 700 | 800 | 800 |
Spindle Nose to Table | mm | 130-390 | 150-550 | 150-750 | 150-750 | 240-820 | 250-950 | 150-950 | 350-1150 |
Distance between Column | mm | 700 | 850 | 1060 | 1200 | 1350 | 1350 | 1580 | 1620 |
Worktable | |||||||||
Worktable Size | mm | 600×600 | 800×700 | 1200×900 | 1300×1000 | 1600×1200 | 1700×1200 | 2200×1480 | 2600×1480 |
Max.Loading on Table | KG | 300 | 600 | 1000 | 2000 | 2000 | 3000 | 6000 | 8000 |
Feed System | |||||||||
XYZ Rapid Feed | m/min | 7.5/7.5/7.5 | 10/10/7.5 | 20/15/10 | 15/15/7.5 | 15/15/7.5 | 15/15/7.5 | 15/15/7.5 | 15/15/7.5 |
Cutting Feed | m/min | 6 | 6 | 10 | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 |
Accuracy | |||||||||
Positioning Accuracy | mm | ±0.008/300 | ±0.008/300 | ±0.008/300 | ±0.008/300 | ±0.008/300 | ±0.008/300 | ±0.008/300 | ±0.008/300 |
Re-Positioning Accuracy | mm | ±0.005/300 | ±0.005/300 | ±0.005/300 | ±0.005/300 | ±0.005/300 | ±0.005/300 | ±0.005/300 | ±0.005/300 |
Spindle | |||||||||
Spindle Speed | rpm | 30000 | 15000 | 15000 | 15000 | 15000 | 15000 | 15000 | 15000 |
Spindle Taper | BT30 | HSK-A63 | HSK-A63 | HSK-A63 | HSK-A63 | HSK-A63 | HSK-A63 | HSK-A63 | |
Others | |||||||||
Footprint | mm | 2000×1700 | 2600×2500 | 3100×2550 | 3800×2550 | 4300×2600 | 5000×2700 | 6000×3000 | 6800×3000 |
Machine Height | mm | 2300 | 2600 | 2900 | 3000 | 3000 | 3200 | 3300 | 3500 |
Machine Weight | KG | 3200 | 5000 | 8000 | 10500 | 11000 | 16000 | 18000 | 23500 |
CNC Controller | FANUC | ||||||||
